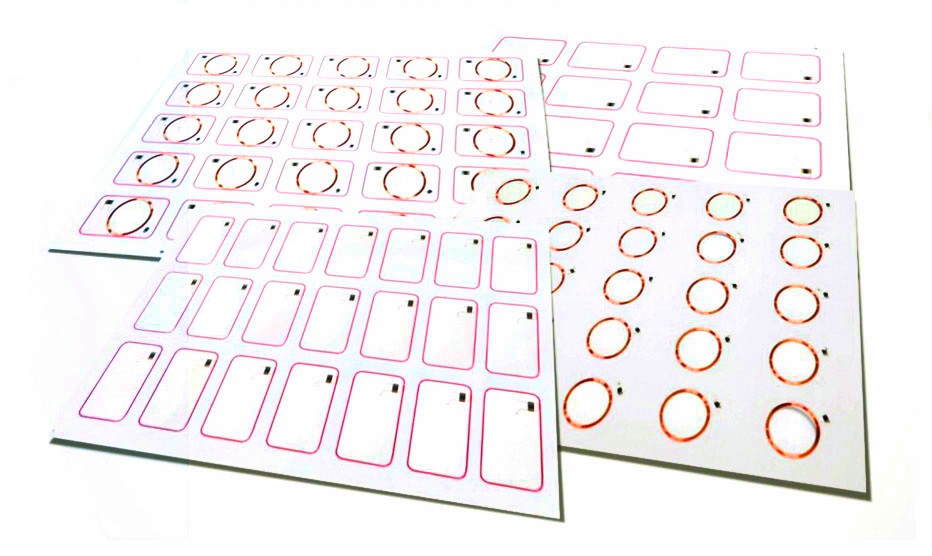

RFID Card InlayRFID card inaly is the basic sheet to make a card.Our inlays are very robust and boast unequaled torsion / bending characteristics, extreme durability and optimized read / write performance. The inlays have a completely flat finish and bring numerous benefits to card manufacturers. We also offer option of combining two different chip technologies in one prelam.

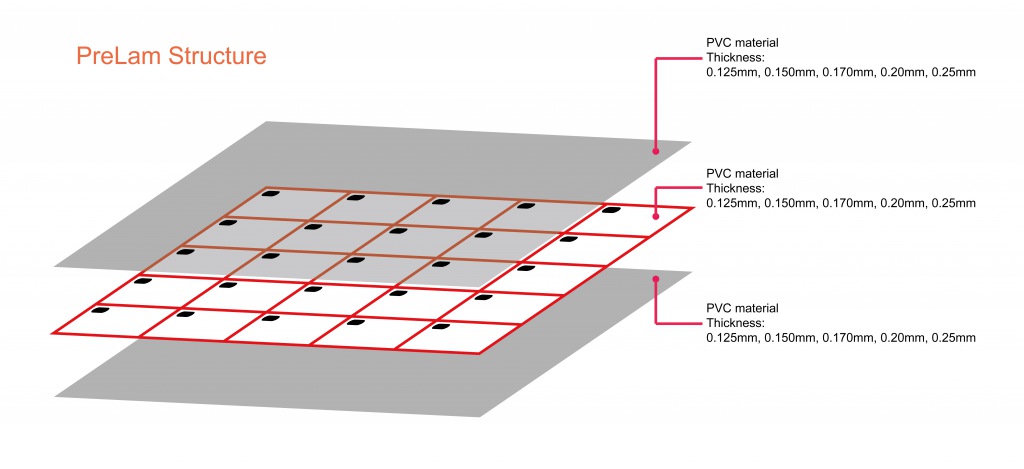

Prelaminated rfid inlays are suitable for use in the production of ISO standard cards.
Our rfid inlays are very robust and boast unequaled torsion / bending characteristics, extreme durability and optimized read / write performance. The inlays have a completely flat finish and bring numerous benefits to card manufacturers.
Our rfid inlay is essentially a semi-finished product, so that the card manufacturer merely needs to collate his printed sheets with the inlay and laminate it.
Specificatoins:
Dimension:2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized.
Antenna:HF: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding
LF: Pre-winding Copper Coil, AL Etching
UHF: AL Etching
RFID card inlay chip:
LH: TK4100、T5577、EM4305、EM4200、HITAG1、HITAG2、HITAG S256、HITAG2048
HF: FM11RF08、ISSI4439、Mifare1k S50、Mifare4K S70、I CODE SLI、I CODE SLI-S、I CODE SLI-L、I CODE SLI-X、Mifare Ultralight/Ultralight C、Mifare PLUS 2K/4K、Mifare Desfire 2K/4K/8K、TI256、TI2048、NTAG213/215/216
UHF: Alien Higgs 3、Alien Higgs 4、NXP UCODE 7、 Impinj Monza 4QT、Impinj Monza 5、Impinj Monza R6、Impinj Monza R6-P、Impinj Monza S6-C、Impinj Monza 4D、Impinj Monza 4E
Application:Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.
