HF RFID Card InlayRFID card inaly is the basic sheet to make a card.Our inlays are very robust and boast unequaled torsion / bending characteristics, extreme durability and optimized read / write performance. The inlays have a completely flat finish and bring numerous benefits to card manufacturers. We also offer option of combining two different chip technologies in one prelam.
HF Thickness:The thinnest is 0.3mm when laminated with Dry inlay; copper wire laminated the thinnest is 0.4mm.

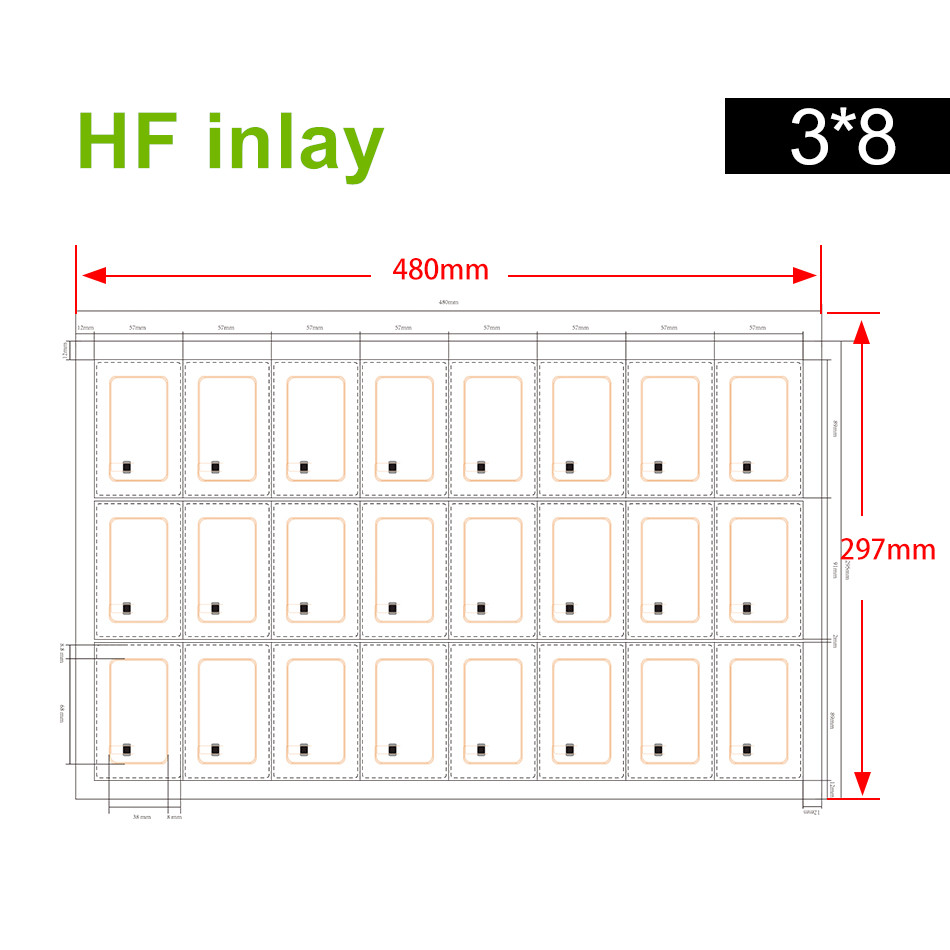

Dimension:2*5, 4*5, 5*5, 4*6, 4*7, 4*8, 4*10, 3*6, 3*7, 3*8, 6*7, 6*8, 6*14 or customized.
Chips Available:
HF:FM11RF08、ISSI4439、Mifare1k S50、Mifare4K S70、I CODE SLI、I CODE SLI-S、I CODE SLI-L、I CODE SLI-X、Mifare Ultralight/Ultralight C、Mifare PLUS 2K/4K、Mifare Desfire 2K/4K/8K、TI256、TI2048、NTAG213/215/216
Antenna: AL Etching, Pre-winding Copper Coil, Altrasonic Embeding
Application:Access Control & Security, Time Attendance, Logical Access, Public Transport, City Card, etc.
